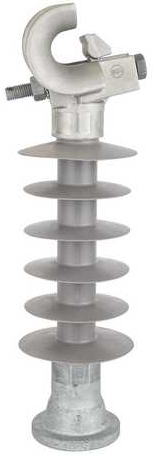

Silicone Line Post Insulator: 35 kV

ANSI Line Post Insulator 35 kV
Universal Clamp / Stud Base 3/4"-10 Tap


Application


Universally mounted line post insulator. Designed for both vertical & horizontal mounting.



Features



  • Two-bolt design allows traveler to remain attached while conductor is tightened
  • Light weight & easy to handle
  • Non-breakable
  • Self-cleaning function
  • Excellent mechanical characteristics
  • Hydrophobic



ITEM
Arc Distance - Dry
Creep/Leakage Distance
Critical Impulse Flashover (CIFO) - Positive
Flashover Voltage - 60 Hz Dry
Flashover Voltage - 60 Hz Wet
Voltage - Line
Voltage Rating
Withstand Voltage - Lightning Impulse (Positive)
VALUE
11.7" (297mm)
26.1" (662mm)
215 kV
135 kV
100 kV
35000 V
35 kV
200 kV
